Taipan’s Range of Hydraulic Hose
Taipan has a complete matched range of hydraulic hose from SAE100R1 to SAE100R19, incorporating additional variants such as high-temperature hose, half-bend radius hose, tough cover hose, jacking hose and grease hose.
We also supply a limited range of hose from other world-class brands such as Aeroquip, to supplement our range as needed.
View Hose CatalogueSINGLE-WIRE BRAIDED HOSE
SAE100R1
PREMIUM ONE-WIRE HYDRAULIC HOSE
This single-wire, braided, non-skive hydraulic hose is designed for high-pressure applications. Its smooth cover* enhances abrasion resistance and meets or exceeds SAE J517 100R1 and EN853 standards.
Cover: *Smooth Cover – ¼” to 1” | Wrapped Cover – 1 ¼ to 2″
Standards: Meets or exceeds SAE J517 100R1 and EN853
Approvals: MSHA, LR, KR, ABS
Temperature Range: -40°C – 100°C
Hose Tails: K series, D series with D1 Shells
SAE100R17
ONE-WIRE, COMPACT SMOOTH COVER
This compact, single-wire, braided hydraulic hose is designed for medium-pressure applications. Its smooth cover enhances abrasion resistance and meets or exceeds SAE J517 100R17 standards.
Standards: Meets or exceeds SAE J517 100R17
Approvals: MSHA, LR, KR, ABS
Temperature Range: -20°C – 100°C
Hose Tails: K series, D series with D17 Shells
Datasheet coming soon
DOUBLE-WIRE BRAIDED HOSE
SAE100R2
PREMIUM TWO-WIRE HYDRAULIC HOSE
This double-wire, braided, non-skive hydraulic hose is designed for high-pressure applications. Its smooth cover* enhances abrasion resistance and meets or exceeds SAE J517 100R2, EN853 and ISO6805 standards.
Cover: *Smooth Cover – ¼” to 1” | Wrapped Cover – 1 ¼ to 2″
Standards: Meets or exceeds SAE J517 100R2, EN853 and ISO6805
Approvals: MSHA, LR, KR, ABS
Temperature Range: -40°C – 100°C
Hose Tails: K series, D series with D2 Shells
Datasheet coming soon
SAE100R2GP
TWO-WIRE GENERAL-PURPOSE HOSE
This double-wire, non-skive, braided hydraulic hose is designed for medium to high-pressure applications. Its wrapped cover enhances abrasion resistance and meets or exceeds SAE J517 100R2, EN853 and 2SN standards.
Standards: Meets or exceeds SAE J517 100R2, EN853 and 2SN
Approvals: MSHA, LR, KR, ABS
Temperature Range: -40°C – 100°C
Hose Tails: K series, D series with D2 Shells
Datasheet coming soon
SAE100R2H
TWO-WIRE HIGH-TEMPERATURE HOSE
This double-wire, braided, non-skive hydraulic hose is designed for high-temperature, high-pressure applications. Its wrapped cover enhances abrasion resistance and meets or exceeds SAE J517 100R2, EN853 and 2SN standards.
Standards: Meets or exceeds SAE J517 100R2, EN853 and 2SN
Approvals: MSHA
Temperature Range: -40°C – 135°C (discontinuous 150°C), for air no higher than 121°C
Hose Tails: K series
Datasheet coming soon
SAE100R19
TWO-WIRE HIGH-PRESSURE HOSE
This double-wire, braided, non-skive hydraulic hose is designed for high-pressure applications. Its wrapped cover enhances abrasion resistance and meets or exceeds SAE J517 100R19 standards.
Standards: Meets or exceeds SAE J517 100R1
Approvals: MSHA, DNV
Temperature Range: -40°C – 100°C (discontinuous 150°C)
Hose Tails: K series
Datasheet coming soon
COMPACT DOUBLE-WIRE BRAIDED HOSE
SAE100R16
TWO-WIRE COMPACT SMOOTH COVER HOSE
This double-wire, non-skive, braided hydraulic hose is designed for medium-pressure applications. Its smooth cover enhances abrasion resistance and meets or exceeds SAE J517 100R16 standards. Also available in a Twin Line variant (SAE100R16TW).
Standards: Meets or exceeds SAE J517 100R16
Approvals: MSHA, LR
Temperature Range: -40°C – 100°C
Hose Tails: K series
Datasheet coming soon
SAE100R16TW
TWO-WIRE COMPACT TWIN LINE HOSE
This double-wire, non-skive, braided hydraulic hose is designed for medium-pressure applications. Its smooth cover enhances abrasion resistance and meets or exceeds SAE J517 100R16 standards. Also available in a single line variant (SAE100R16).
Standards: Meets or exceeds SAE J517 100R16
Approvals: MSHA, LR
Temperature Range: -40°C – 100°C (discontinuous 135°C)
Hose Tails: K series
Datasheet coming soon
SAE100R16H
TWO-WIRE COMPACT HIGH-TEMPERATURE HOSE
This double-wire, non-skive, braided hydraulic hose is designed for high-temperature applications requiring a tighter bend radius. It has enhanced abrasion resistance and meets or exceeds SAE J517 100R16 standards.
Standards: Meets or exceeds SAE J517 100R16, EN857 and 2SN
Approvals: MSHA, DNV
Temperature Range: -40°C – 150°C, for air no higher than 121°C
Hose Tails: K series
Datasheet coming soon
TX2
TWO-WIRE COMPACT EXTREME CONDITION HOSE
This highly flexible, compact, double-wire braided hydraulic hose has a reduced bend radius and a bending force that meets DIN EN 857 2SC and exceeds SAE100 R16-S. It boasts a 2000 hour Ozone resistance to withstand harsh Aussie conditions.
Standards: Meets or exceeds SAE J517 100R16, DIN EN857 2SC
Approvals: MSHA, DNV
Temperature Range: -40°C – 100°C (intermittent to 120°C)
Hose Tails: K series
Datasheet coming soon
SAE100R16GP
TWO-WIRE COMPACT GENERAL PURPOSE HOSE
This double-wire, non-skive, braided hydraulic hose is designed for medium to high-pressure applications. Its outer cover enhances abrasion resistance and meets or exceeds SAE J517 100R16 and EN857 2SC standards.
Standards: Meets or exceeds SAE J517 100R16 and EN857 2SC
Approvals: MSHA
Temperature Range: -40°C – 100°C
Hose Tails: K series
Datasheet coming soon
FOUR-WIRE SPIRAL HOSE
SAE100R12
FOUR-WIRE PREMIUM STANDARD HOSE
This four-wire spiral, non-skive hydraulic hose is designed for very high-pressure applications and offers a higher degree of flexibility compared to conventional spiral hose. Its flame-resistant cover enhances heat and abrasion resistance and meets or exceeds SAE J517 100R12 standards.
Standards: Meets or exceeds SAE J517 100R12
Approvals: MSHA, DNV, ABS
Temperature Range: -40°C – 100°C (intermittent to 120°C)
Hose Tails: L series
Datasheet coming soon
SAE100R12SF
FOUR-WIRE PREMIUM SUPERFLEX HOSE
This four-wire spiral, non-skive hydraulic hose is designed for very high-pressure applications and offers a higher degree of flexibility compared to conventional spiral hose. Its flame-resistant cover enhances heat and abrasion resistance, offers 720 hours of ozone resistance, and meets or exceeds SAE J517 100R12 standards. Tested over 1,000,000 impulse cycles at 133% of working pressure.
Standards: Meets or exceeds SAE J517 100R12
Approvals: ¾” & 1” – DNV, MSHA, BV | 1 ¼” & 1 ½” – DNV, MSHA, LR, MED, ABS
Temperature Range: -40°C – 100°C (intermittent to 120°C)
Hose Tails: L series
Datasheet coming soon
TX4000
FOUR-WIRE EXTREME CONDITION HOSE
This four-wire spiral, non-skive hydraulic hose is designed for very high-pressure applications and offers a higher degree of flexibility compared to conventional spiral hose. Its flame-resistant cover enhances heat and abrasion resistance, offers 720 hours of ozone resistance, and meets or exceeds SAE J517 100R12 standards.
Standards: Meets or exceeds SAE J517 100R12
Approvals: MSHA, MED, ABS
Temperature Range: -40°C – 121°C (intermittent to 125°C)
Hose Tails: L series
Datasheet coming soon
FOUR & SIX-WIRE SPIRAL HOSE
SAE100R13
4-6 WIRE EXTRA HIGH-PRESSURE 5000PSI HOSE
This spiral, non-skive hydraulic hose is designed for very high-pressure applications. Its synthetic rubber cover enhances abrasion resistance and meets or exceeds SAE J517 100R13 and EN856 R13 standards.
Construction: Four plies: -06 to -16 | Six plies: -20 to -32
Standards: Meets or exceeds SAE J517 100R13 and EN856 R13
Approvals: MSHA, LR, KR, ABS
Temperature Range: -40°C – 121°C
Hose Tails: N series
Datasheet coming soon
SAE100R15
4-6 WIRE EXTRA HIGH-PRESSURE 6000PSI HOSE
This spiral, non-skive hydraulic hose is designed for extremely high-pressure applications. Its synthetic rubber cover enhances abrasion resistance and meets or exceeds SAE J517 100R15 standards. Tested over 1,000,000 impulse cycles at 133% of working pressure from -06 to -12, and 120% of working pressure from -16 to -32.
Construction: Four plies: -06 to -16 | Six plies: -20 to -32
Standards: Meets or exceeds SAE J517 100R15 and EN856 R15
Approvals:¾” & 1” – DNV, MSHA, BV | 1 ¼” & 1 ½” – DNV, MSHA, LR, MED, ABS
Temperature Range: -40°C – 121°C (intermittent to 125°C)
Hose Tails: L series (-06 and -08), N series (-10 to -32)
Datasheet coming soon
TX6000
4-6 WIRE EXTREME CONDITION HOSE
This highly flexible, compact, multispiral hydraulic hose with reduced bend radius and bending force meets ISO 18752-CC and exceeds SAE 100R15. Its flame-resistant cover enhances heat and abrasion resistance, offers 700 hours of ozone resistance, and meets or exceeds SAE J517 100R15 and ISO 18752-CC standards.
Construction: Four plies: -06 to -16 | Six plies: -20 to -32
Standards: Meets or exceeds SAE J517 100R15 and ISO 18752-CC
Approvals: ¾” & 1” – DNV, MSHA, BV | 1 ¼” & 1 ½” – DNV, MSHA, LR, MED, ABS
Temperature Range: -40°C – 121°C
Hose Tails: L series (-06 and -08), N series (-10 to -32)
Datasheet coming soon
TEXTILE BRAID HOSE
SAE100R6
TEXTILE PREMIUM SMOOTH COVER HOSE
This textile-braided hydraulic hose is designed for medium-pressure applications. Its smooth cover enhances abrasion resistance and meets or exceeds SAE J517 100R6 standards.
Standards: Meets or exceeds SAE J517 100R6
Approvals: MSHA
Temperature Range: -40°C – 100°C
Hose Tails: H series
Datasheet coming soon
SAE100R6H
TEXTILE HIGH-TEMPERATURE HOSE
This textile-braided hydraulic hose is designed for high-temperature, low-pressure applications. Its smooth cover enhances abrasion resistance and meets or exceeds SAE J517 100R6 standards.
Standards: Meets or exceeds SAE J517 100R6
Approvals: MSHA
Temperature Range: -40°C – 150°C, for air no higher than 121°C
Hose Tails: H series
Datasheet coming soon
THERMOPLASTIC HOSE

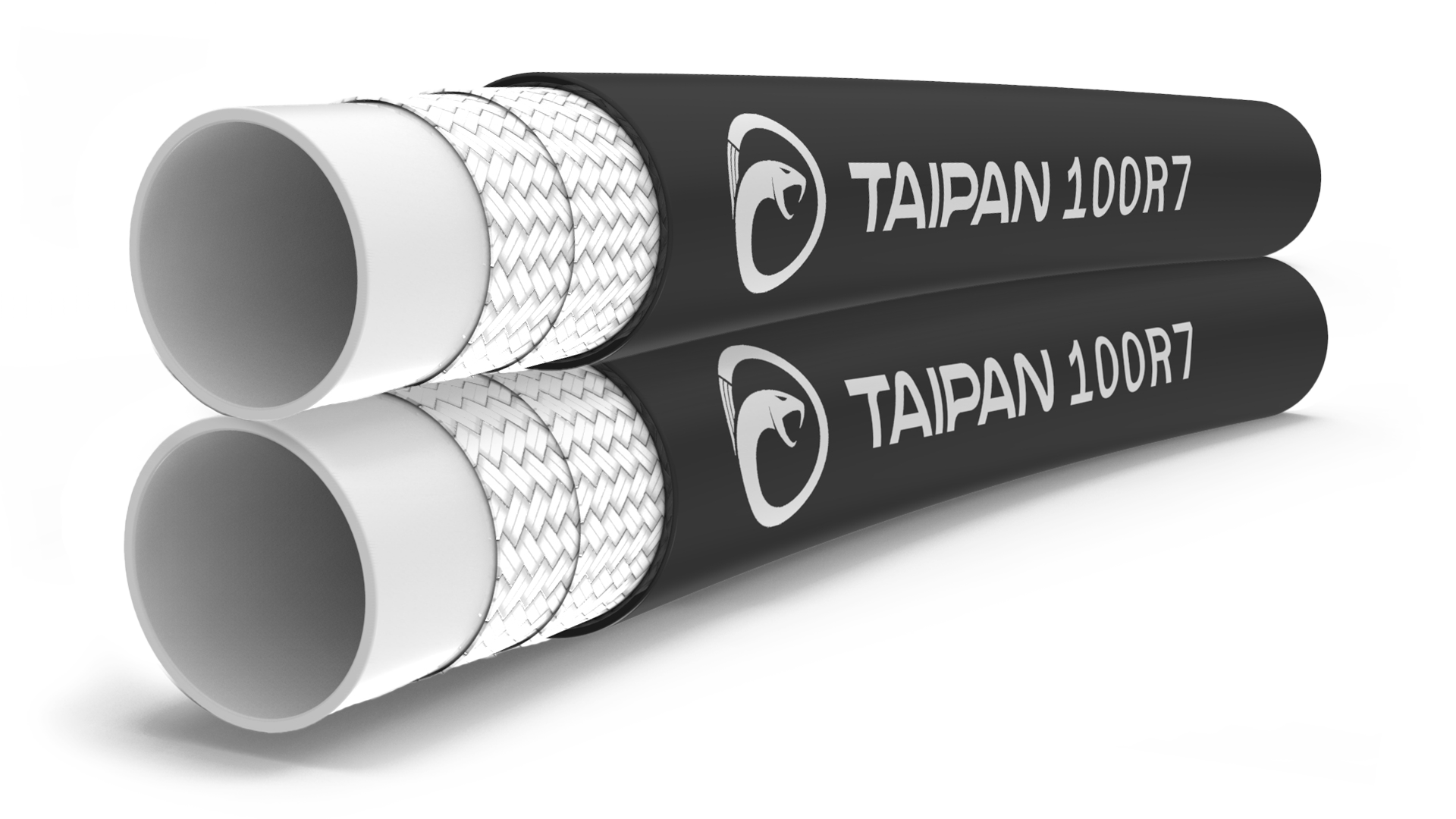

SAE100R7
STANDARD THERMOPLASTIC
This thermoplastic hydraulic hose is designed for medium-pressure applications. Its polyurethane cover enhances abrasion resistance and meets or exceeds SAE J517 100R7 and EN855 standards.
Standards: Meets or exceeds SAE J517 100R7 and EN855
Vacuum Rating: 0.93bar, 700mm Hg (-13.5PSI: 27.5 inch Hg)
Temperature Range: -40°C – 100°C, not to exceed 70°C for air and water-based fluids
Hose Tails: J series
Datasheet coming soon
SAE100R7TW
TWIN LINE THERMOPLASTIC
This twin line thermoplastic hydraulic hose is designed for medium-pressure applications. Its polyurethane cover enhances abrasion resistance and meets or exceeds SAE J517 100R7 and EN855 standards.
Standards: Meets or exceeds SAE J517 100R7 and EN855
Vacuum Rating: 0.93bar, 700mm Hg (-13.5PSI: 27.5 inch Hg)
Temperature Range: -40°C – 100°C, not to exceed 70°C for air and water-based fluids
Hose Tails: J series
Datasheet coming soon

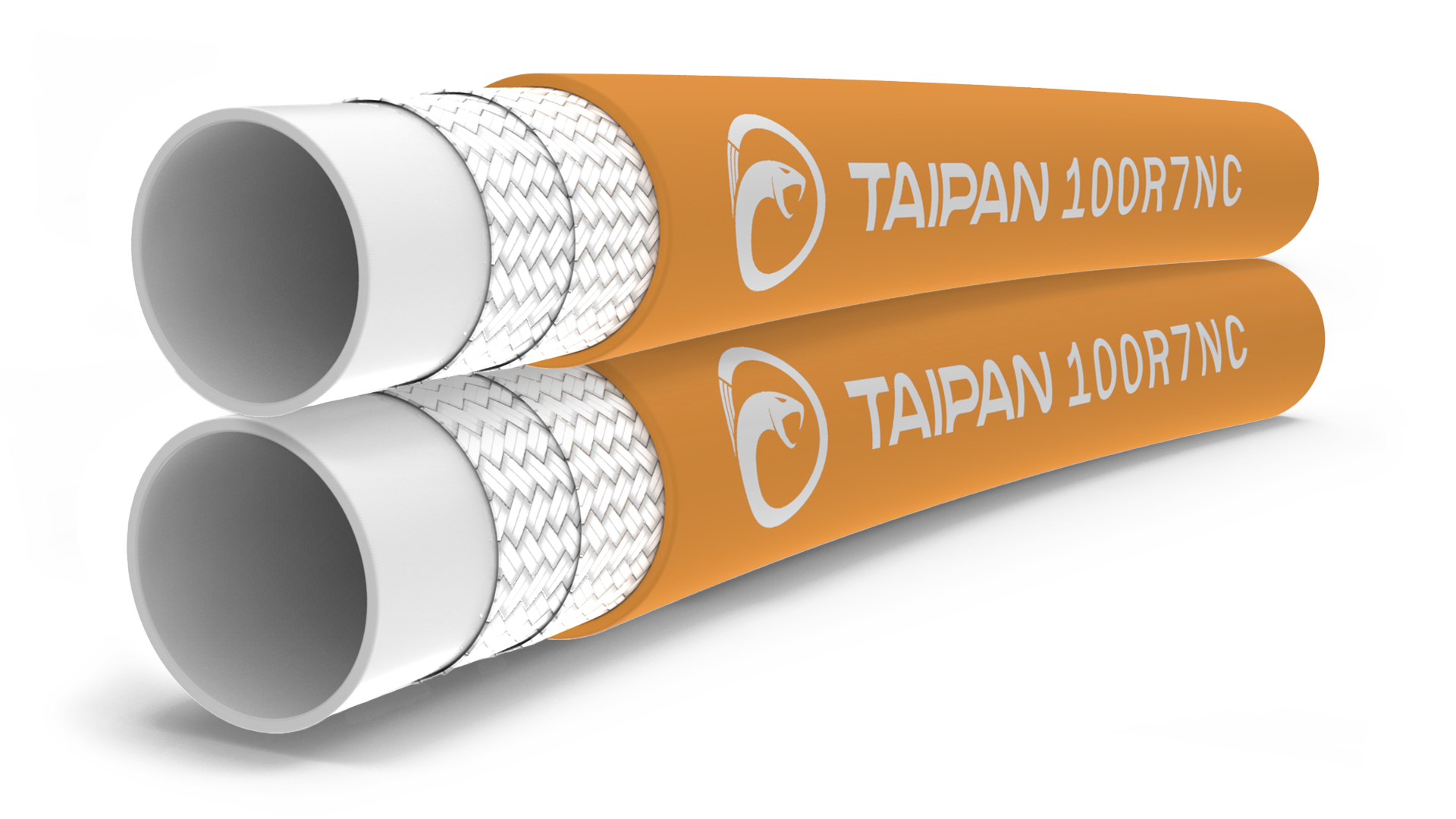

SAE100R7NC
NON-CONDUCTIVE TWIN LINE
This thermoplastic hydraulic hose is designed for medium-pressure applications requiring non-conductivity. Its polyurethane cover enhances abrasion resistance and meets or exceeds SAE J517 100R7 and EN855 standards.
Standards: Meets or exceeds SAE J517 100R7 and EN855. Also meets SAE J517, J343 and EN855 for non-conductivity where maximum electrical leakage shall not exceed 50A when a 152mm sample is subject to 37.5 kV for 5 minutes, equivalent to 250kV/metre
Vacuum Rating: 0.93bar, 700mm Hg (-13.5PSI: 27.5 inch Hg)
Temperature Range: -40°C – 100°C, not to exceed 70°C for air and water-based fluids
Hose Tails: J series
Datasheet coming soon
SAE100R7NCTW
NON-CONDUCTIVE TWIN LINE
This twin line thermoplastic hydraulic hose is designed for medium-pressure applications requiring non-conductivity. Its polyurethane cover enhances abrasion resistance and meets or exceeds SAE J517 100R7 and EN855 standards.
Standards: Meets or exceeds SAE J517 100R7 and EN855. Also meets SAE J517, J343 and EN855 for non-conductivity where maximum electrical leakage shall not exceed 50A when a 152mm sample is subject to 37.5 kV for 5 minutes, equivalent to 50kV/metre
Vacuum Rating: 0.93bar, 700mm Hg (-13.5PSI: 27.5 inch Hg)
Temperature Range: -40°C – 100°C, not to exceed 70°C for air and water-based fluids
Hose Tails: J series
Datasheet coming soon
SAE100R8
HIGH-PRESSURE THERMOPLASTIC
This thermoplastic hydraulic hose is designed for high-pressure applications and offers very low expansion. Its polyurethane cover enhances abrasion resistance and meets or exceeds SAE J517 100R8 and EN855 standards.
Standards: Meets or exceeds SAE J517 100R8 and EN855
Vacuum Rating: 0.93bar, 700mm Hg (-13.5PSI: 27.5 inch Hg)
Temperature Range: -40°C – 100°C, not to exceed 70°C for air and water-based fluids
Hose Tails: J series
Datasheet coming soon
SAE100R8TW
HIGH-PRESSURE TWIN LINE THERMOPLASTIC
This twin line thermoplastic hydraulic hose is designed for high-pressure applications and offers very low expansion. Its polyurethane cover enhances abrasion resistance and meets or exceeds SAE J517 100R8 and EN855 standards.
Standards: Meets or exceeds SAE J517 100R8 and EN855
Vacuum Rating: 0.93bar, 700mm Hg (-13.5PSI: 27.5 inch Hg)
Temperature Range: -40°C – 100°C, not to exceed 70°C for air and water-based fluids
Hose Tails: J series
Datasheet coming soon

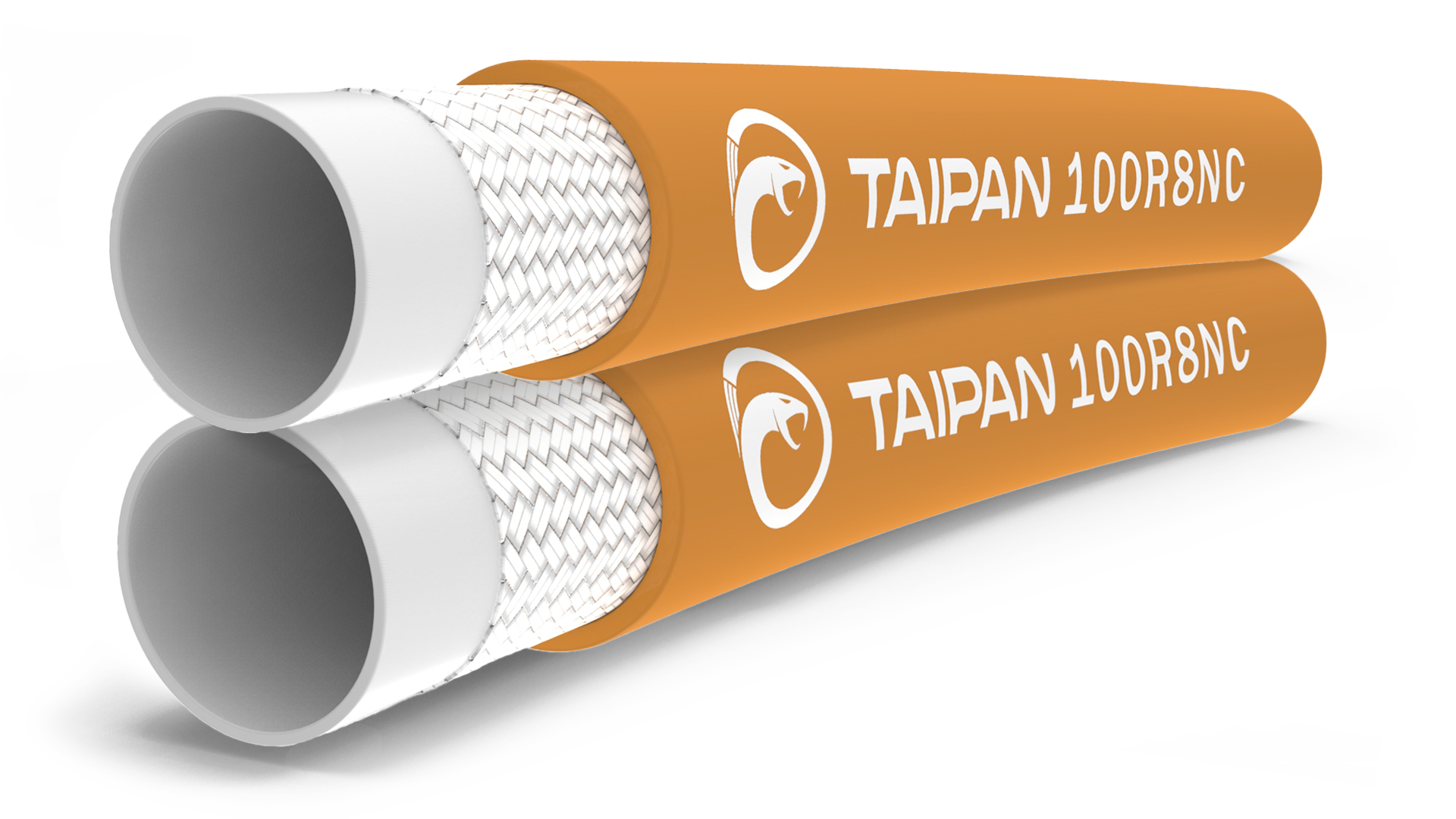

SAE100R8NC
HIGH-PRESSURE NON-CONDUCTIVE
This thermoplastic hydraulic hose is designed for high-pressure applications requiring non-conductivity. Its polyurethane cover enhances abrasion resistance and meets or exceeds SAE J517 100R8 and EN855 standards.
Standards: Meets or exceeds SAE J517 100R8 and EN855. Also meets SAE J517, J343 and EN855 for non-conductivity where maximum electrical leakage shall not exceed 50A when a 152mm sample is subject to 37.5 kV for 5 minutes, equivalent to 250kV/metre
Vacuum Rating: 0.93bar, 700mm Hg (-13.5PSI: 27.5 inch Hg)
Temperature Range: -40°C – 100°C, not to exceed 70°C for air and water-based fluids
Hose Tails: J series
Datasheet coming soon
SAE100R8NCTW
HIGH-PRESSURE NON-CONDUCTIVE TWIN LINE
This twin line thermoplastic hydraulic hose is designed for high-pressure applications requiring non-conductivity. Its polyurethane cover enhances abrasion resistance and meets or exceeds SAE J517 100R8 and EN855 standards.
Standards: Meets or exceeds SAE J517 100R8 and EN855. Also meets SAE J517, J343 and EN855 for non-conductivity where maximum electrical leakage shall not exceed 50A when a 152mm sample is subject to 37.5 kV for 5 minutes, equivalent to 250kV/metre
Vacuum Rating: 0.93bar, 700mm Hg (-13.5PSI: 27.5 inch Hg)
Temperature Range: -40°C – 100°C, not to exceed 70°C for air and water-based fluids
Hose Tails: J series
Datasheet coming soon

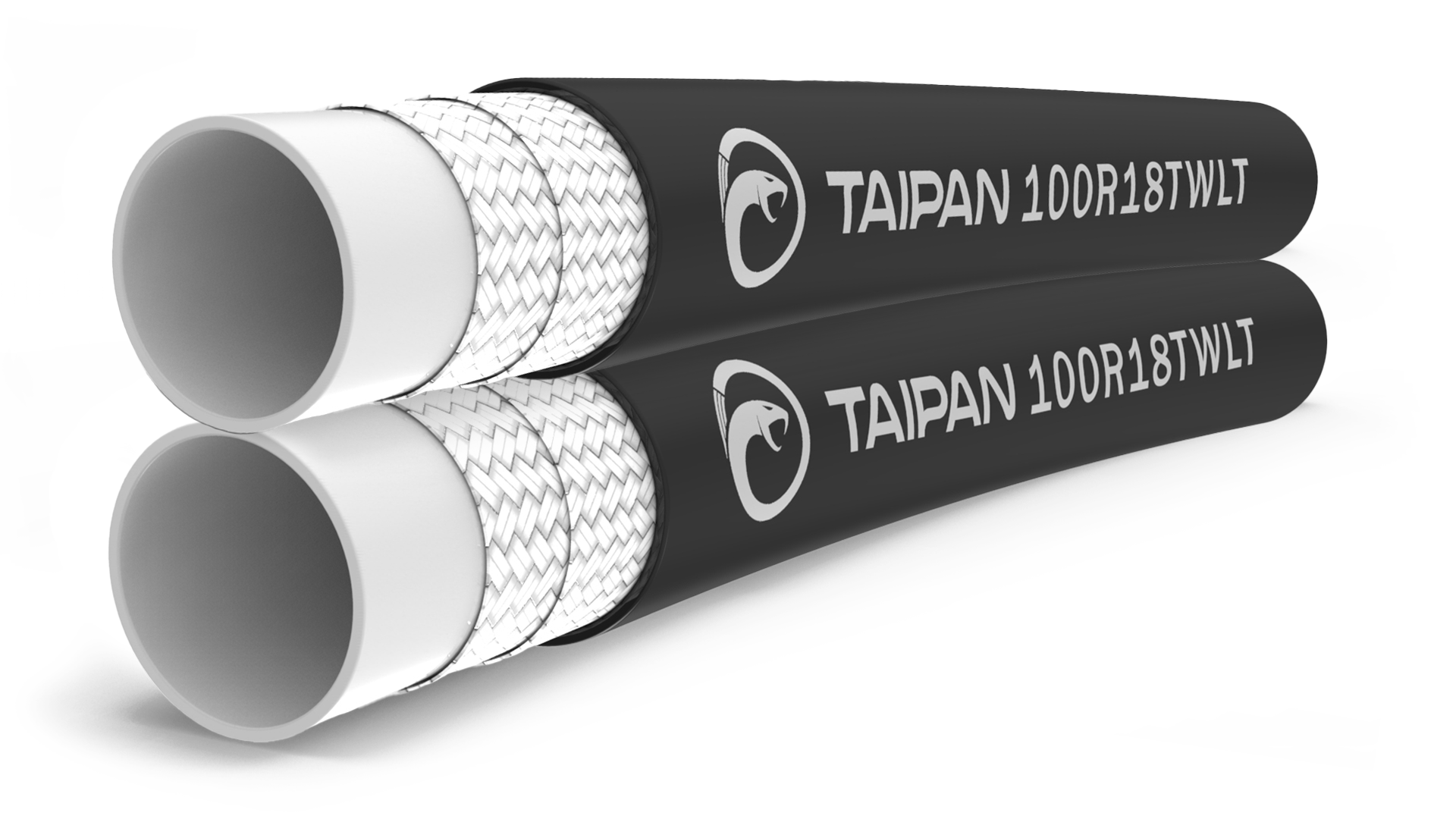

SAE100R18TWLT
LOW-TEMPERATURE THERMOPLASTIC
This twin line, thermoplastic hydraulic hose is designed for medium-pressure applications. Its optimum bonding characteristics and special polyester cover make it ideal for equipment operating in cold environments. Meets or exceeds SAE J517 100R18 standards.
Standards: Meets or exceeds SAE J517 100R18
Temperature Range: -55°C – 100°C, limited to 70°C for air and water-based fluids
Hose Tails: J series
Datasheet coming soon
ACCESSORY HOSE
SAE100R1EO
SINGLE-BRAID ENGINE OIL
This single-wire, braided, non-skive hydraulic hose is designed for high-pressure applications. Its outer cover enhances abrasion resistance and meets or exceeds SAE J517 100R1 and EN853 standards.
Cover: Smooth Cover – 1/4” to 1” | Wrapped Cover – 1 1/4 to 2″
Standards: Meets or exceeds SAE J517 100R1 and EN853
Approvals: MSHA, LR, KR, ABS
Temperature Range: -40°C – 121°C
Hose Tails: K series, D series with D1 Shells
Datasheet coming soon
SAE100R17RFS
FIRE SUPPRESSION
This single-wire, braided hydraulic hose is designed specifically for use in fire suppression systems. Its outer cover enhances abrasion resistance and meets or exceeds SAE J517 100R17 standards.
Standards: Meets or exceeds SAE J517 100R17
Approvals: MSHA
Temperature Range: -20°C – 100°C
Hose Tails: K series, D series with D17 Shells
Datasheet coming soon
SAE100R6RFS
TEXTILE FIRE SUPPRESSION
This textile-braided hydraulic hose is designed specifically for use in fire suppression systems. Its outer cover enhances heat and abrasion resistance and meets or exceeds SAE J517 100R6 standards.
Standards: Meets or exceeds SAE J517 100R6
Approvals: MSHA
Temperature Range: -40°C – 100°C
Hose Tails: K series, D series with D16 Shells
Datasheet coming soon
GH8.3
GREASE HOSE
This braided, high-pressure hydraulic hose is designed specifically for greasing and lubrication systems. Its anti-stick outer cover is highly kink-resistant and allows for easy installation and compact routing. Meets or exceeds DIN 1283 standards.
Standards: Meets or exceeds DIN 1283
Temperature Range: -40°C – 60°C
Hose Tails: GH series, J series
Datasheet coming soon
PSH1
PAINT SPRAY HOSE
This braided hydraulic hose is designed specifically for paint spray equipment.
Temperature Range: -20°C – 80°C
Hose Tails: A series
Datasheet coming soon
SAEJ188
POWER STEERING HOSE
This braided, high-pressure hydraulic hose is designed specifically for greasing and lubrication systems. Its anti-stick outer cover is highly kink-resistant and allows for easy installation and compact routing. Meets or exceeds DIN 1283 standards.
Standards: Meets or exceeds DIN 1283
Temperature Range: -40°C – 60°C
Hose Tails: GH series, J series
Datasheet coming soon
SAE100R14
STAINLESS PTFE SMOOTH BORE
This braided hydraulic hose is designed for applications where excellent chemical resistance, low coefficient friction, and non-contamination properties are required.
Temperature Range: -54°C – 260°C
Hose Tails: C series
Datasheet coming soon
SAE100R14-C
STAINLESS PTFE CONVOLUTED
This braided hydraulic hose is designed for applications where excellent chemical resistance, low coefficient friction, and non-contamination properties are required.
Temperature Range: -54°C – 260°C
Hose Tails: C series
Datasheet coming soon
SAE100R4
PREMIUM SUCTION HELIX-WIRE HOSE
This low-pressure hydraulic hose is designed specifically for oil suction and discharge applications. Meets or exceeds SAE J517 100R4 standards.
Standards: Meets or exceeds SAE J517 100R4
Temperature Range: -25°C – 100°C
Hose Tails: Low-pressure tails (e.g. QAEX, QEBEX) with super clamps
Datasheet coming soon
SAE100R5H
HIGH-TEMPERATURE TRUCKER HOSE
This braided, non-skive hydraulic hose is designed for high-temperature, medium-pressure impulse applications. Meets or exceeds SAE J517 100R5 standards.
Standards: Meets or exceeds SAE J517 100R5
Approvals: DOT
Temperature Range: -40°C – 150°C, for air no higher than 121°C
Hose Tails: DF series, K series, F series
Datasheet coming soon
SAE100R1PWH
SINGLE-WIRE PRESSURE WASHER/WASTERBLAST HOSE
This single-wire, braided hydraulic hose is designed for professional pressure cleaning applications. Its outer cover enhances detergent, weather, ozone and abrasion resistance. Meets or exceeds ISO 7751 standards.
Cover: Blue – ¼” | Grey – ⅜”
Standards: Meets or exceeds ISO 7751
Temperature Range: -10°C – 155°C
Hose Tails: K series
Datasheet coming soon

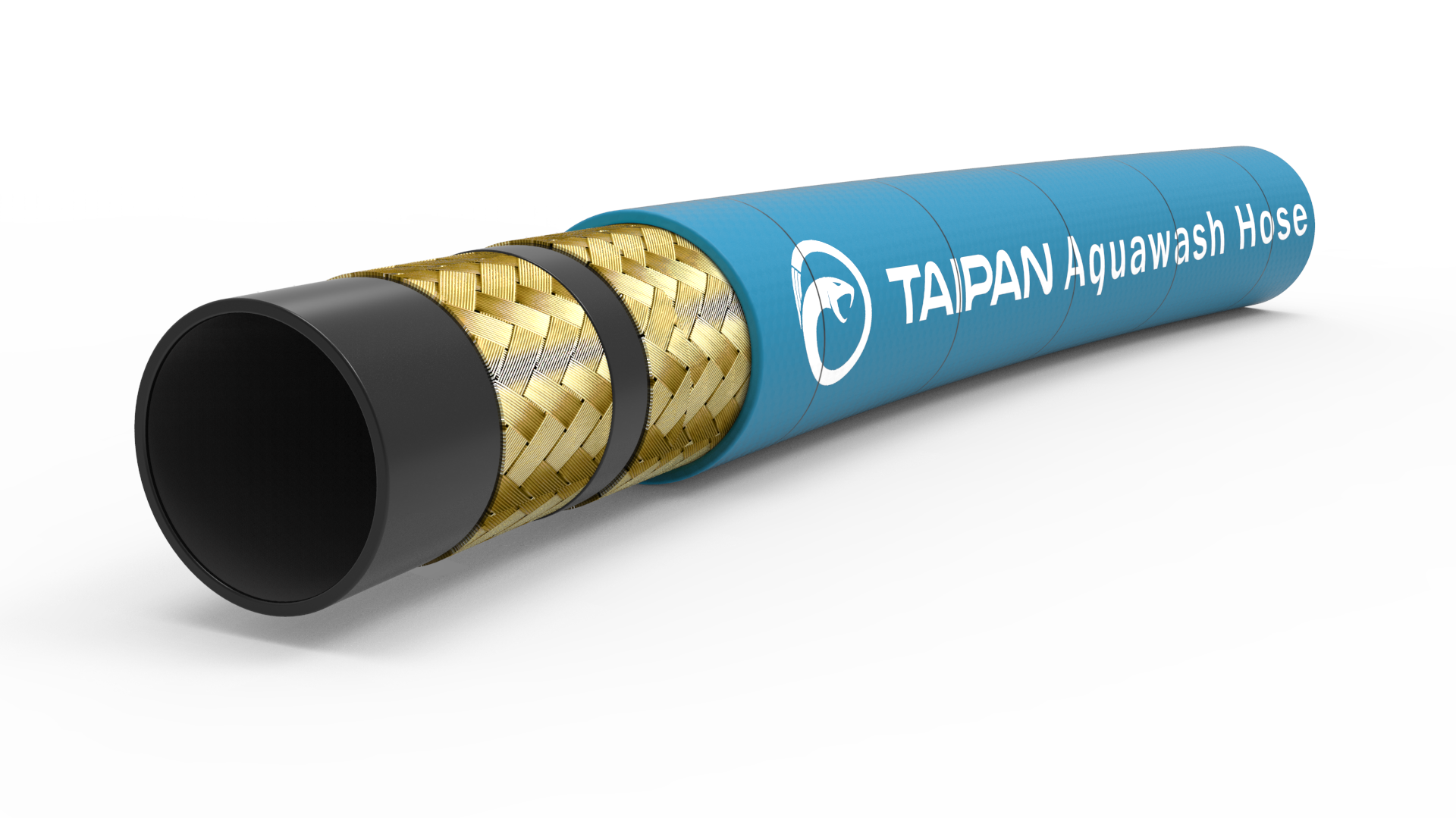

SAE100R2PWH
TWO-WIRE PRESSURE WASHER/WASTERBLAST HOSE
This two-wire braided hydraulic hose is designed for professional pressure cleaning applications. Its outer cover enhances detergent, weather, ozone and abrasion resistance. Meets or exceeds EN1829-2 and ISO 7751 standards.
Standards: Meets or exceeds EN 1829-2 and ISO 7751
Temperature Range: -10°C – 155°C
Hose Tails: K series
Datasheet coming soon
Cant find what you’re looking for?
Call our knowledgeable Sales Team and let us know your requirements. Let’s work together to find a solution.
