Taipan’s Range of Hydraulic Hose
Taipan has a complete matched range of hydraulic hose from SAE100R1 to SAE100R19, incorporating additional variants such as high-temperature hose, half-bend radius hose, tough cover hose, jacking hose and grease hose.
We also supply a limited range of hose from other world-class brands such as Aeroquip, to supplement our range as needed.
View Hose CatalogueSINGLE-WIRE BRAIDED HOSE

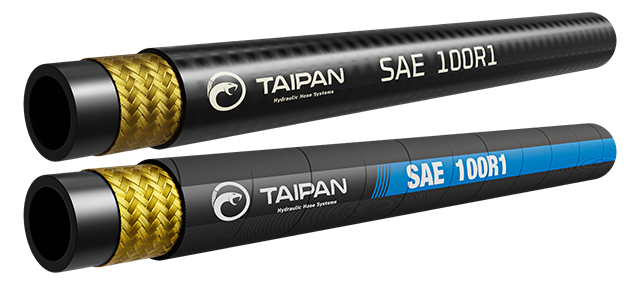

SAE100R1
PREMIUM ONE-WIRE HYDRAULIC HOSE
This single-wire, braided, hydraulic hose is designed for medium-pressure applications. Its cover enhances abrasion resistance and meets or exceeds SAE J517 100R1 and EN853 1SN standards.
Cover: Smooth Cover – ¼” to 1” | Wrapped Cover – 1 ¼ to 2″
Standards: Meets or exceeds SAE J517 100R1, EN853 1SN
Approvals: MSHA, LR, KR, ABS
Temperature Range: -40°C – 100°C
Hose Tails: K series, D series with D1 Shells

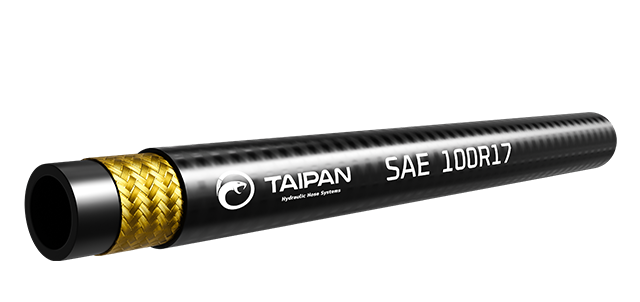

SAE100R17
ONE-WIRE, COMPACT SMOOTH COVER
This compact, single-wire, braided hydraulic hose is designed for medium-pressure applications. Its smooth cover enhances abrasion resistance and meets or exceeds SAE J517 100R17 standards.
Standards: Meets or exceeds SAE J517 100R17
Approvals: MSHA
Temperature Range: -20°C – 100°C
Hose Tails: K series, D series with D17 shells
DOUBLE-WIRE BRAIDED HOSE

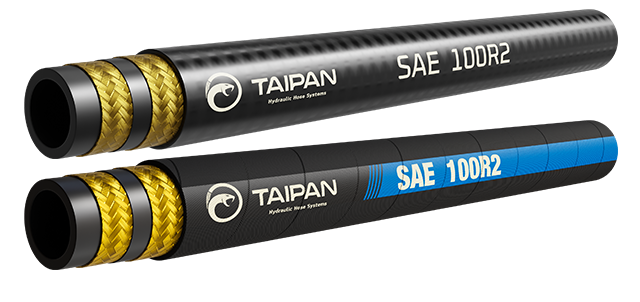

SAE100R2
PREMIUM TWO-WIRE HYDRAULIC HOSE
This double-wire, braided, non-skive hydraulic hose is designed for high-pressure applications. Its cover enhances abrasion resistance and meets or exceeds SAE J517 100R2 and EN853 2SN standards.
Cover: Smooth Cover – ¼” to 1” | Wrapped Cover – 1 ¼ to 2″
Standards: Meets or exceeds SAE J517 100R2, EN853 2SN
Approvals: MSHA, LR, KR, ABS
Temperature Range: -40°C – 100°C
Hose Tails: K series, D series with D2 shells
SAE100R2GP
TWO-WIRE GENERAL-PURPOSE HOSE
This double-wire, non-skive, braided hydraulic hose is designed for high-pressure applications. Its wrapped cover enhances abrasion resistance and meets or exceeds SAE J517 100R2 and EN853 2SN standards.
Standards: Meets or exceeds SAE J517 100R2, EN853 2SN
Temperature Range: -40°C – 100°C
Hose Tails: K series, D series with D2 shells

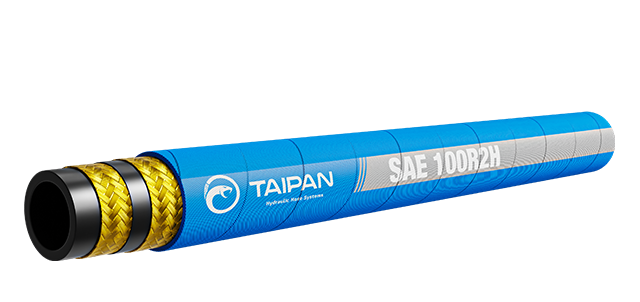

SAE100R2H
TWO-WIRE HIGH-TEMPERATURE HOSE
This double-wire, braided, non-skive hydraulic hose is designed for high-temperature, high-pressure applications. Its wrapped cover enhances abrasion resistance and meets or exceeds SAE J517 100R2 and EN853 2SN standards.
Standards: Meets or exceeds SAE J517 100R2, EN853 2SN
Approvals: MSHA
Temperature Range: -40°C – 150°C. For air, no higher than 121°C
Hose Tails: K series
SAE100R19
TWO-WIRE HIGH-PRESSURE HOSE
This double-wire, braided, non-skive hydraulic hose is designed for high-pressure applications. Its wrapped cover enhances abrasion resistance and meets or exceeds SAE J517 100R19 standards.
Standards: Meets or exceeds SAE J517 100R19
Approvals: MSHA, DNV
Temperature Range: -40°C – 100°C (discontinuous 125°C)
Hose Tails: K series
COMPACT DOUBLE-WIRE BRAIDED HOSE

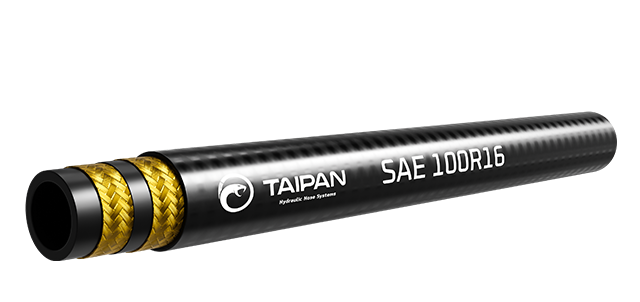

SAE100R16
TWO-WIRE COMPACT SMOOTH COVER HOSE
This double-wire, non-skive, braided hydraulic hose is designed for high-pressure applications. Its smooth cover enhances abrasion resistance and meets or exceeds SAE J517 100R16 standards.
Standards: Meets or exceeds SAE J517 100R16
Approvals: MSHA, LR
Temperature Range: -40°C – 100°C
Hose Tails: K series
SAE100R16TW
TWO-WIRE COMPACT TWIN LINE HOSE
This double-wire, non-skive, braided hydraulic hose is designed for high-pressure applications. Its smooth cover enhances abrasion resistance and meets or exceeds SAE J517 100R16 standards.
Standards: Meets or exceeds SAE J517 100R16
Approvals: MSHA, LR
Temperature Range: -40°C – 100°C (discontinuous 135°C)
Hose Tails: K series

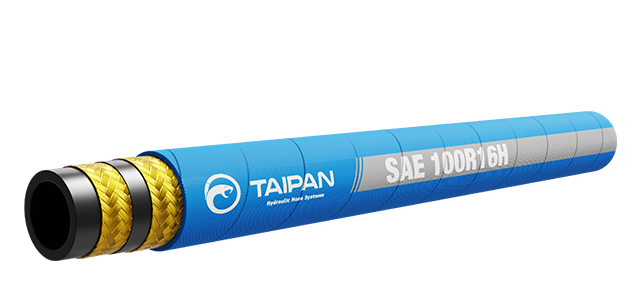

SAE100R16H
TWO-WIRE COMPACT HIGH-TEMPERATURE HOSE
This double-wire, non-skive, braided hydraulic hose is designed for high-temperature, high-pressure applications requiring a tighter bend radius. It has enhanced abrasion resistance and meets or exceeds SAE J517 100R16 and EN857 2SC standards.
Standards: Meets or exceeds SAE J517 100R16, EN857 2SC
Approvals: MSHA, DNV
Temperature Range: -40°C – 150°C. For air, no higher than 121°C
Hose Tails: K series
TX2
TWO-WIRE COMPACT EXTREME CONDITION HOSE
This double-wire, non-skive, compact hydraulic hose is designed for extreme conditions. Featuring an ultra-durable cover that exceeds the industry standard tenfold, 2000-hour ozone resistance, and a bend radius that outperforms most, this hose is guaranteed to endure even the harshest industrial, environmental and climatic conditions in Australia. Impulse tested to 200,000 cycles at 133% of its working pressure.
Standards: Meets or exceeds SAE 100R16-S, SAE J517 100R16, EN 857 2SC and SAE J517 100R19 (-04 to -12)
Approvals: MSHA, ISO 6805 (-08 to -16)
Temperature Range: -40oC – 100oC
Hose Tails: K series

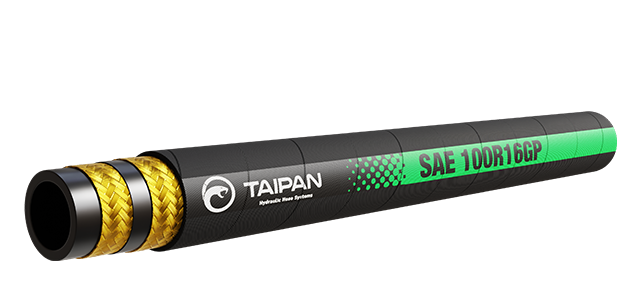

SAE100R16GP
TWO-WIRE COMPACT GENERAL PURPOSE HOSE
This double-wire, non-skive, braided hydraulic hose is designed for high-pressure applications. Its outer cover enhances abrasion resistance and meets or exceeds SAE J517 100R16 and EN857 2SC standards.
Standards: Meets or exceeds SAE J517 100R16, EN857 2SC
Approvals: MSHA
Temperature Range: -40oC – 100oC
Hose Tails: K series
FOUR-WIRE SPIRAL HOSE

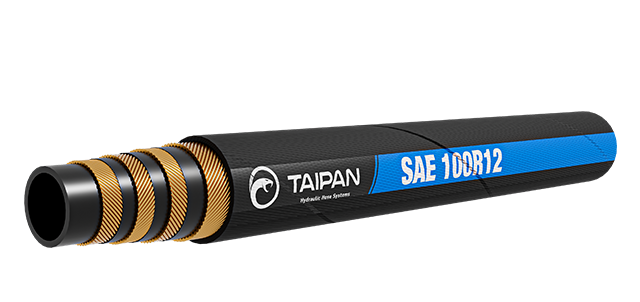

SAE100R12
FOUR-WIRE PREMIUM STANDARD HOSE
This four-wire spiral, non-skive hydraulic hose is designed for very high-pressure applications and offers a higher degree of flexibility compared to conventional spiral hose. Its flame-resistant cover enhances heat and abrasion resistance and meets or exceeds SAE J517 100R12 standards.
Standards: Meets or exceeds SAE J517 100R12 and EN856
Approvals: DNV, MSHA, ABS
Temperature Range: -40°C – 121°C
Hose Tails: L series

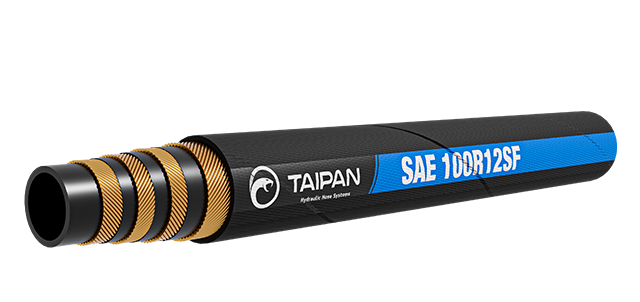

SAE100R12SF
FOUR-WIRE PREMIUM SUPERFLEX HOSE
This four-wire spiral, non-skive hydraulic hose is designed for very high-pressure applications and offers a higher degree of flexibility compared to conventional spiral hose. Its flame-resistant cover enhances heat and abrasion resistance, offers 720 hours of ozone resistance, and meets or exceeds SAE J517 100R12 and EN856 standards. Tested over 500,000 impulse cycles at 133% of working pressure.
Standards: Meets or exceeds SAE J517 100R12, EN856
Approvals: 3/4” & 1” – DNV, MSHA, BV | 1 1/4” & 1 1/2” – DNV, MSHA, MED, ABS
Temperature Range: -40°C – 121°C (intermittent to 125°C)
Hose Tails: L series

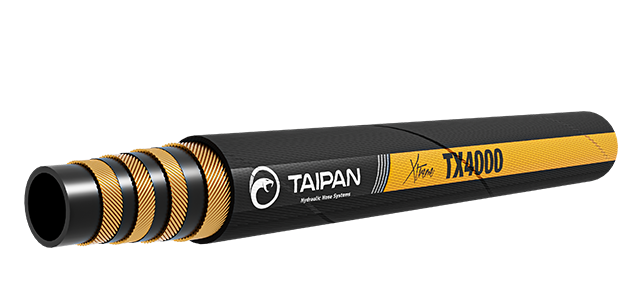

TX4000
FOUR-WIRE EXTREME CONDITION HOSE
This highly flexible, multispiral, compact hydraulic hose is designed for extreme conditions. Featuring an ultra-durable cover that exceeds the industry standard, excellent ozone resistance, and a bend-radius that outperforms most, this hose is guaranteed to endure even the harshest industrial, environmental and climatic conditions in Australia.
Performance tested to 500,000 cycles at 133% of its working pressure.
Standards: Meets or exceeds SAE J517 100R12 and EN856 R12
Approvals: DNV, MSHA, ABS, MED
Temperature Range: -40°C – 121°C
Hose Tails: L series
FOUR & SIX-WIRE SPIRAL HOSE
SAE100R13
4-6 WIRE EXTRA HIGH-PRESSURE 5000PSI HOSE
This four-wire spiral, non-skive hydraulic hose is designed for very high-pressure applications. Its synthetic rubber cover enhances abrasion resistance and meets or exceeds SAE J517 100R13 and EN856 R13 standards.
Construction: Four plies: -06 to -16 | Six plies: -20 to -32
Standards: Meets or exceeds SAE J517 100R13 and EN856 R13
Approvals: MSHA, LR, KR, ABS
Temperature Range: -40oC – 121oC
Hose Tails: N series

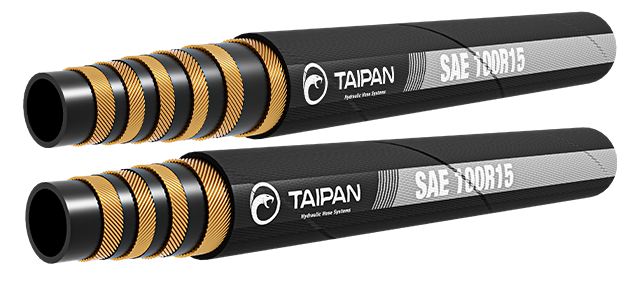

SAE100R15
4-6 WIRE EXTRA HIGH-PRESSURE 6000PSI HOSE
This spiral, non-skive hydraulic hose is designed for extremely high-pressure applications. Its synthetic rubber cover enhances abrasion resistance and meets or exceeds SAE J517 100R15 standards. Tested to 500,000 impulse cycles at 120% of working pressure.
Construction: Four plies: -06 to -16 | Six plies: -20 to -32
Standards: Meets or exceeds SAE J517 100R15
Approvals: 3/8” to 1 1/2” – DNV, MSHA, MED, ABS | 2” – MSHA
Temperature Range: -40°C – 121°C (intermittent to 125°C)
Hose Tails: L series (-06 and -08), N series (-10 to -32)

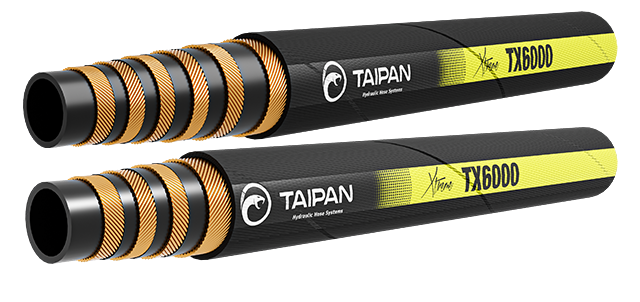

TX6000
4-6 WIRE EXTREME CONDITION HOSE
This highly flexible, multispiral, hydraulic hose is designed for extreme conditions. Featuring an ultra-durable cover that exceeds the industry standard tenfold, 2000-hour ozone resistance, and a bend-radius that outperforms most, this hose is guaranteed to endure even the harshest industrial, environmental and climatic conditions in Australia.
Performance tested up to 500,000 cycles @7300psi & 120% over its working pressure.
Construction: Four plies: -06 to -16 | Six plies: -20 to -32
Standards: Meets or exceeds SAE J517 100R15 and ISO 18752-CC
Approvals: MSHA, ISO 6805
Temperature Range: -40°C – 121°C
Hose Tails: L series (-06 and -08), N series (-10 to -32)
TEXTILE BRAID HOSE

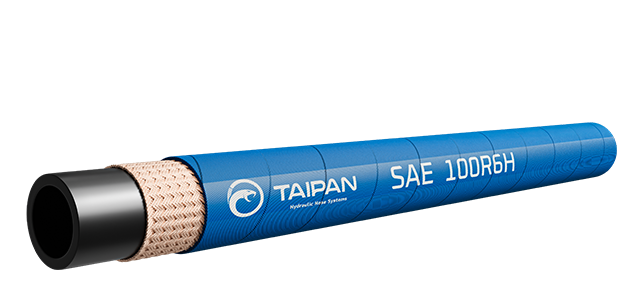

SAE100R6H
TEXTILE HIGH-TEMPERATURE HOSE
This textile-braided hydraulic hose is designed for high-temperature, low-pressure applications. Its cover enhances abrasion resistance and meets or exceeds SAE J517 100R6 standards.
Standards: Meets or exceeds SAE J517 100R6
Approvals: MSHA
Temperature Range: -40°C – 150°C, for air no higher than 121°C
Hose Tails: H series, J series
THERMOPLASTIC HOSE
SAE100R7
STANDARD THERMOPLASTIC
This thermoplastic hydraulic hose is designed for medium-pressure applications. Its polyurethane cover enhances abrasion resistance and meets or exceeds SAE J517 100R7, ISO 3949-R7 and EN855 standards.
Standards: Meets or exceeds SAE J517 100R7, ISO 3949-R7 and EN855
Vacuum Rating: 0.93bar, 700mm Hg (-13.5PSI: 27.5 inch Hg)
Temperature Range: -40oC – 100oC. Not to exceed 70oC for air and water-based fluids
Hose Tails: J series

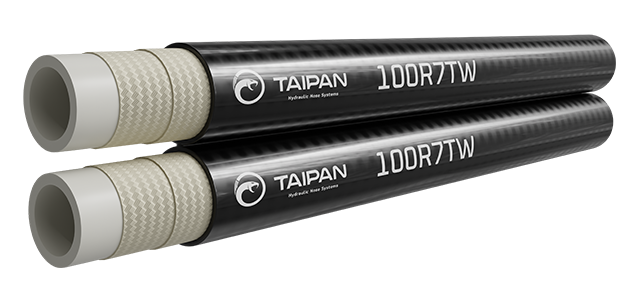

SAE100R7TW
TWIN LINE THERMOPLASTIC
This twin-line thermoplastic hydraulic hose is designed for medium-pressure applications. Its polyurethane cover enhances abrasion resistance and meets or exceeds SAE J517 100R7 and EN855 standards.
Standards: Meets or exceeds SAE J517 100R7 and EN855
Vacuum Rating: 0.93bar, 700mm Hg (-13.5PSI: 27.5 inch Hg)
Temperature Range: -40°C – 100°C, not to exceed 70°C for air and water-based fluids
Hose Tails: J series
SAE100R7NC
NON-CONDUCTIVE TWIN LINE
This thermoplastic hydraulic hose is designed for medium-pressure applications requiring non-conductivity. Its polyurethane cover enhances abrasion resistance and meets or exceeds SAE J517 100R7, ISO 3949-R7 and EN855 standards.
Standards: Meets or exceeds SAE J517 100R7 and EN855. Also meets SAE J517, J343, ISO 3949-R7 and EN855 for non-conductivity where maximum electrical leakage shall not exceed 50A when a 152mm sample is subject to 37.5 kV for 5 minutes, equivalent to 250kV/metre
Vacuum Rating: 0.93bar, 700mm Hg (-13.5PSI: 27.5 inch Hg)
Temperature Range: -40°C – 100√C. Not to exceed 70°C for air and water-based fluids
Hose Tails: J series

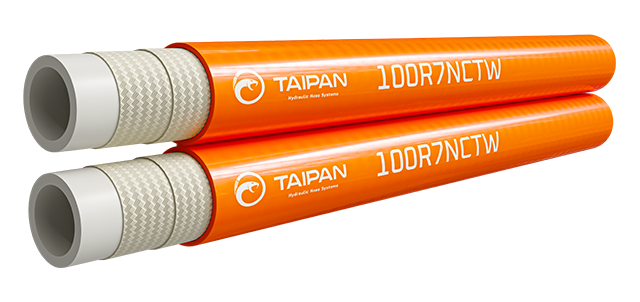

SAE100R7NCTW
NON-CONDUCTIVE TWIN LINE
This twin-line thermoplastic hydraulic hose is designed for medium-pressure applications requiring non-conductivity. Its polyurethane cover enhances abrasion resistance and meets or exceeds SAE J517 100R7, ISO 3949-R7 and EN855 standards.
Standards: Meets or exceeds SAE J517 100R7 and EN855. Also meets SAE J517, J343, ISO 3949-R7 and EN855 for non-conductivity where maximum electrical leakage shall not exceed 50A when a 152mm sample is subject to 37.5 kV for 5 minutes, equivalent to 250kV/metre
Vacuum Rating: 0.93bar, 700mm Hg (-13.5PSI: 27.5 inch Hg)
Temperature Range: -40°C – 100°C. Not to exceed 70°C for air and water-based fluids
Hose Tails: J series

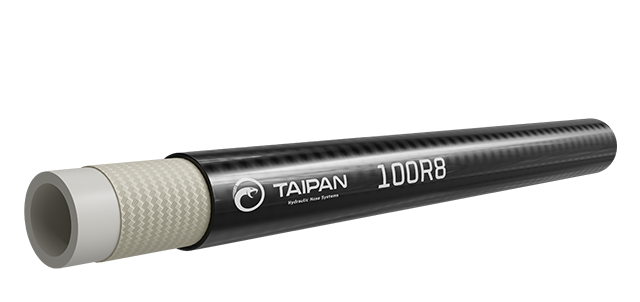

SAE100R8
HIGH-PRESSURE THERMOPLASTIC
This thermoplastic hydraulic hose is designed for high-pressure applications and offers very low expansion. Its polyurethane cover enhances abrasion resistance and meets or exceeds SAE J517 100R8, ISO 3949-R8 and EN855 standards.
Standards: Meets or exceeds SAE J517 100R8, ISO 3949-R8 and EN855
Vacuum Rating: 0.93bar, 700mm Hg (-13.5PSI: 27.5 inch Hg)
Temperature Range: -40°C – 100°C, not to exceed 70°C for air and water-based fluids
Hose Tails: J series
SAE100R8TW
HIGH-PRESSURE TWIN LINE THERMOPLASTIC
This twin line thermoplastic hydraulic hose is designed for high-pressure applications and offers very low expansion. Its polyurethane cover enhances abrasion resistance and meets or exceeds SAE J517 100R8, ISO 3949-R8 and EN855 standards.
Standards: Meets or exceeds SAE J517 100R8, ISO 3949-R8 and EN855
Vacuum Rating: 0.93bar, 700mm Hg (-13.5PSI: 27.5 inch Hg)
Temperature Range: -40oC – 100oC. Not to exceed 70oC for air and water-based fluids
Hose Tails: J series
SAE100R8NC
HIGH-PRESSURE NON-CONDUCTIVE
This thermoplastic hydraulic hose is designed for high-pressure applications requiring non-conductivity. Its polyurethane cover enhances abrasion resistance and meets or exceeds SAE J517 100R8, ISO 3949-R8 and EN855 standards.
Standards: Meets or exceeds SAE J517 100R8, ISO 3949-R8 and EN855. Also meets SAE J517, J343 and EN855 for non-conductivity where maximum electrical leakage shall not exceed 50A when a 152mm sample is subject to 37.5 kV for 5 minutes, equivalent to 250kV/metre
Vacuum Rating: 0.93bar, 700mm Hg (-13.5PSI: 27.5 inch Hg)
Temperature Range: -40°C – 100°C. Not to exceed 70°C for air and water-based fluids
Hose Tails: J series

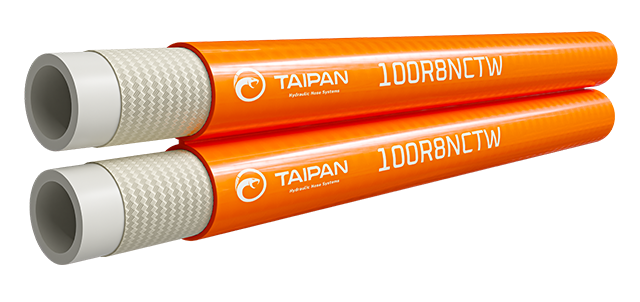

SAE100R8NCTW
HIGH-PRESSURE NON-CONDUCTIVE TWIN LINE
This twin-line thermoplastic hydraulic hose is designed for high-pressure applications requiring non-conductivity. Its polyurethane cover enhances abrasion resistance and meets or exceeds SAE J517 100R8, ISO 3949-R8 and EN855 standards.
Standards: Meets or exceeds SAE J517 100R8 and EN855. Also meets SAE J517, J343 and EN855 for non-conductivity where maximum electrical leakage shall not exceed 50A when a 152mm sample is subject to 37.5 kV for 5 minutes, equivalent to 250kV/metre
Vacuum Rating: 0.93bar, 700mm Hg (-13.5PSI: 27.5 inch Hg)
Temperature Range: -40°C – 100°C. Not to exceed 70°C for air and water-based fluids
Hose Tails: J series

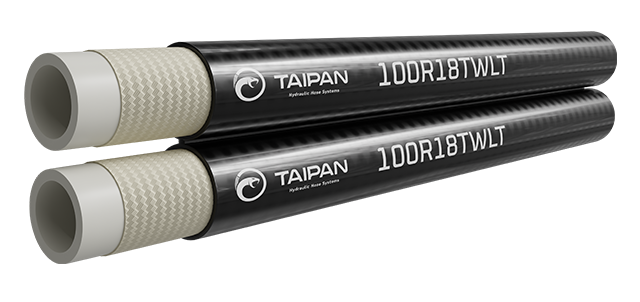

SAE100R18TWLT
LOW-TEMPERATURE THERMOPLASTIC
This twin line, thermoplastic hydraulic hose is designed for medium-pressure applications. Its optimum bonding characteristics and special polyester cover make it ideal for equipment operating in cold environments. Meets or exceeds SAE J517 100R18 and ISO 3949-R18 standards.
Standards: Meets or exceeds SAE J517 100R18 and ISO 3949-R18
Temperature Range: -55oC – 100oC. Limited to 70oC for air and water-based fluids
Hose Tails: J series
ACCESSORY HOSE
SAE100R1EO
SINGLE-BRAID ENGINE OIL
This single-wire, braided, non-skive hydraulic hose is designed for high-pressure applications. Its outer cover enhances abrasion resistance and meets or exceeds SAE J517 100R1 and EN853 standards.
Standards: Meets or exceeds SAE J517 100R1 and EN853
Approvals: MSHA, LR, KR, ABS
Temperature Range: -40°C – 121°C
Hose Tails: K series, D series with D1 shells

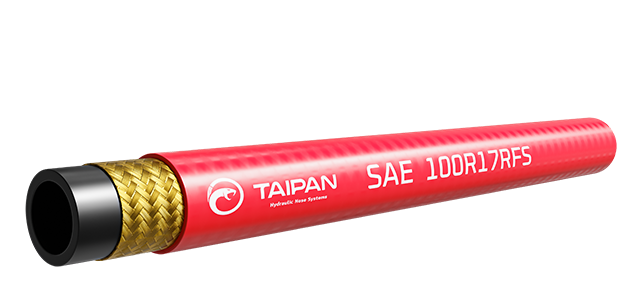

SAE100R17RFS
FIRE SUPPRESSION
This single-wire, braided hydraulic hose is designed specifically for use in fire suppression systems. Its outer cover enhances abrasion resistance and meets or exceeds SAE J517 100R17 standards.
Standards: Meets or exceeds SAE J517 100R17
Approvals: MSHA
Temperature Range: -20oC – 100oC.
Hose Tails: K series, D series with D17 shells

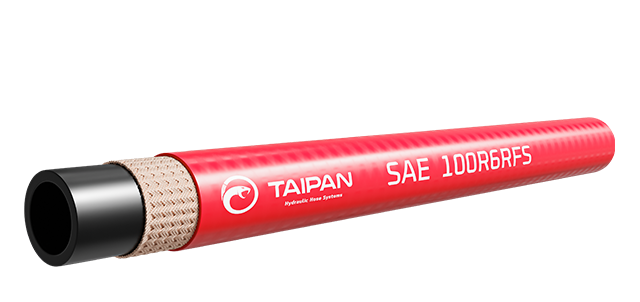

SAE100R6RFS
TEXTILE FIRE SUPPRESSION
This textile-braided hydraulic hose is designed specifically for use in fire suppression systems. Its outer cover enhances heat and abrasion resistance and meets or exceeds SAE J517 100R6 standards.
Standards: Meets or exceeds SAE J517 100R6
Approvals: MSHA
Temperature Range: -40oC – 100oC.
Hose Tails: H series

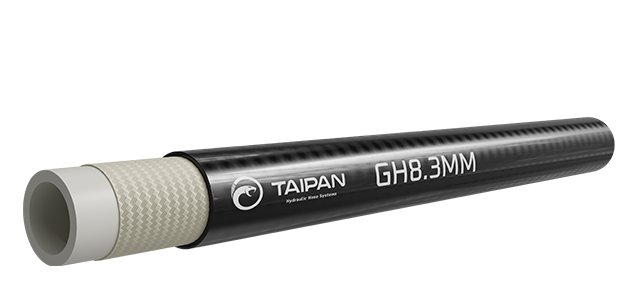

GH8.3
GREASE HOSE
This braided, high-pressure hydraulic hose is designed specifically for greasing and lubrication systems. Its anti-stick outer cover is highly kink-resistant and allows for easy installation and compact routing. Meets or exceeds DIN 1283 standards.
Standards: Meets or exceeds DIN 1283
Temperature Range: -40oC – 60oC.
Hose Tails: GH series, J series

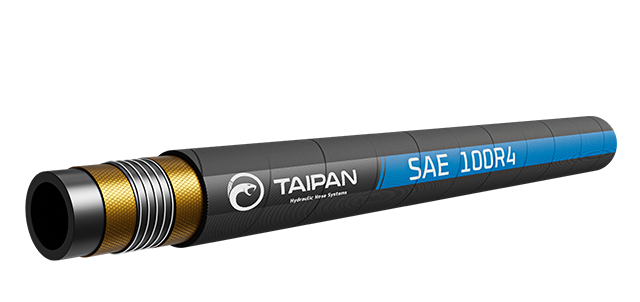

SAE100R4
PREMIUM SUCTION HELIX-WIRE HOSE
This low-pressure hydraulic hose is designed specifically for oil suction and discharge applications. Meets or exceeds SAE J517 100R4 standards.
Standards: Meets or exceeds SAE J517 100R4
Temperature Range: -25°C – 100°C
Hose Tails: Low-pressure tails (e.g. QAEX, QEBEX) with super clamps, K series, L series

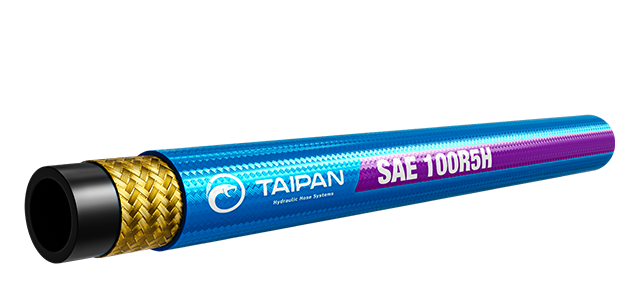

SAE100R5H
HIGH-TEMPERATURE TRUCKER HOSE
This braided, non-skive hydraulic hose is designed for high-temperature, medium-pressure impulse applications. Meets or exceeds SAE J517 100R5 standards.
Standards: Meets or exceeds SAE J517 100R5
Approvals: DOT
Temperature Range: -40°C – 150°C. For air, no higher than 121°C
Hose Tails: DF series, K series, F series

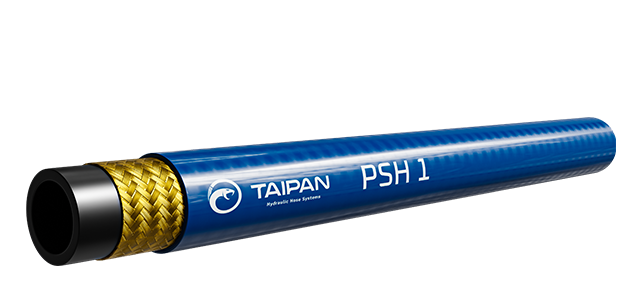

SAE100R1PWH
SINGLE-WIRE PRESSURE WASHER HOSE
This single-wire, braided hydraulic hose is designed for professional pressure cleaning applications. Its outer cover enhances detergent, weather, ozone and abrasion resistance. Meets or exceeds ISO 7751 standards.
Cover: Blue – ¼” | Grey – ⅜”
Standards: Meets or exceeds ISO 7751
Temperature Range: -10°C – 155°C
Hose Tails: K series

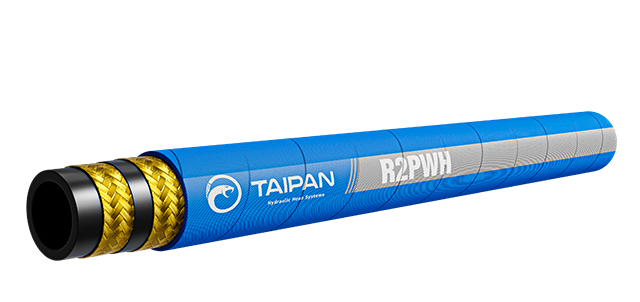

SAE100R2PWH
TWO-WIRE PRESSURE WASHER HOSE
This two-wire braided hydraulic hose is designed for professional pressure cleaning applications. Its outer cover enhances detergent, weather, ozone and abrasion resistance. Meets or exceeds EN1829-2 and ISO 7751 standards.
Standards: Meets or exceeds EN1829-2 & ISO 7751
Temperature Range: -10°C – 155°C
Hose Tails: K series

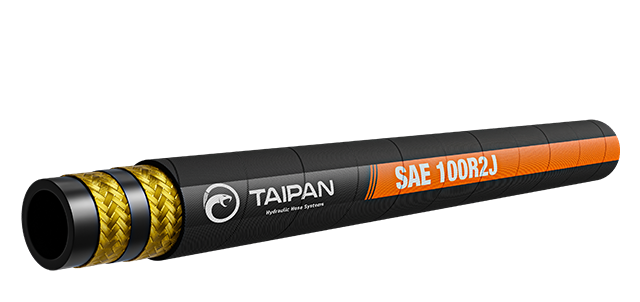

SAE100R2J
JACKING HOSE
This braided, non-skive hydraulic hose is designed specifically for hydraulic jack applications. Meets or exceeds IJ100 standards (10000PSI static pressure only).
Standards: Meets or exceeds IJ100 (10000PSI static pressure only)
Temperature Range: -40°C – 100°C (intermittent to 125oC)
Hose Tails: K series
