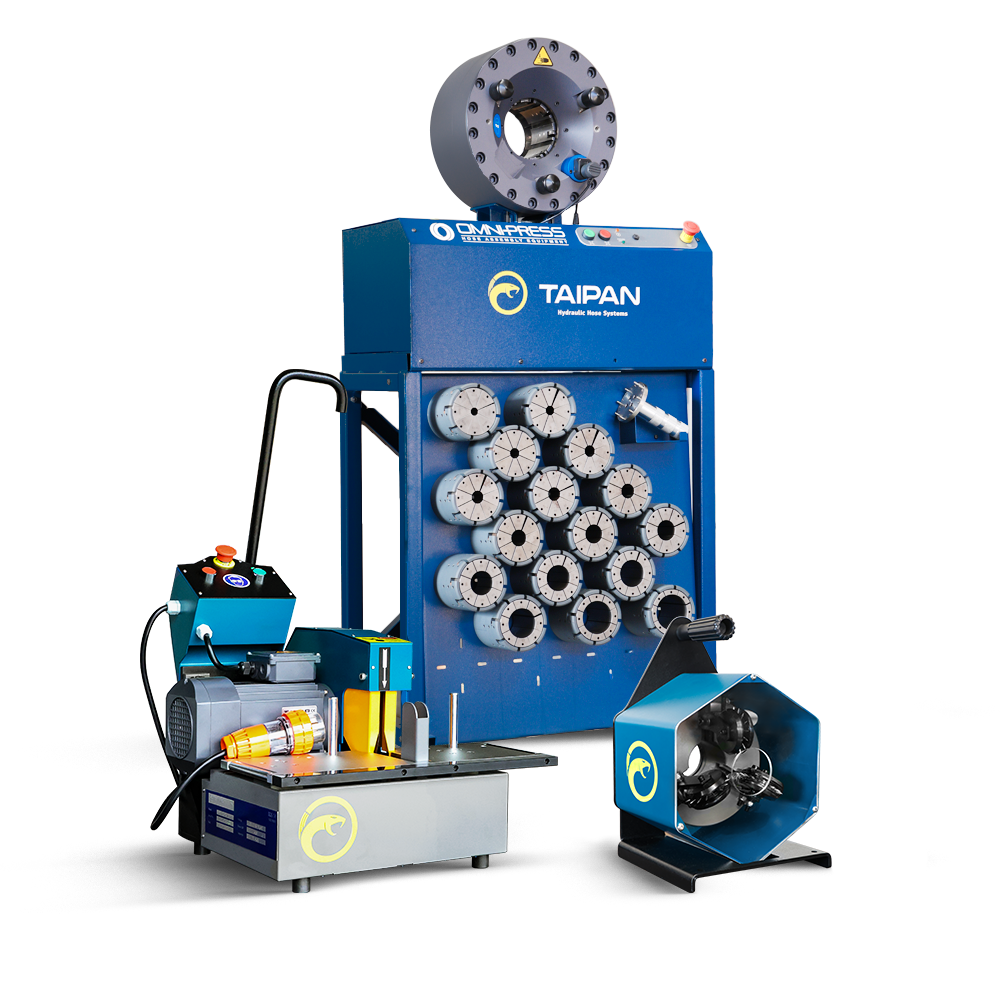

Taipan’s Range of Hydraulic Hose Assembly Equipment

Looking to equip your workshop with a new hose crimper? Taipan is more than just a hydraulic hose supplier – we also support your full hose assembly equipment needs.

To enquire about pricing, availability or ordering, please contact your local Taipan sales representative, who can help you choose the right crimping solution for your operation.

Crimpers

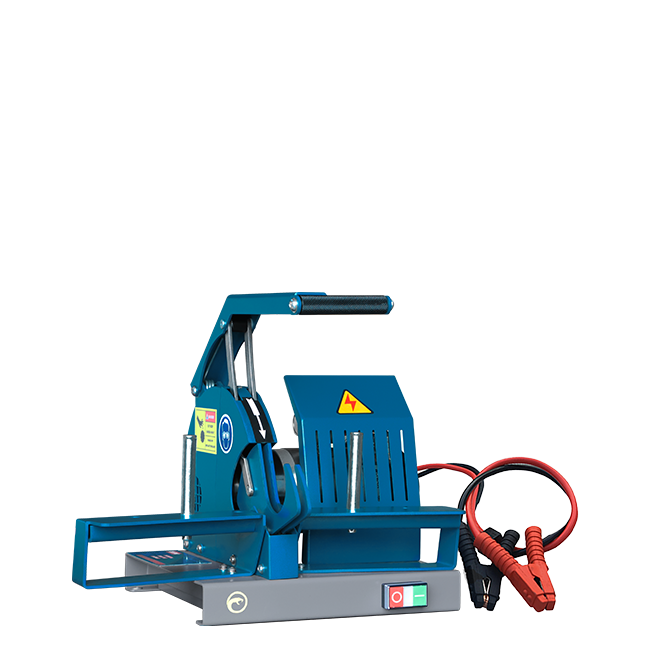

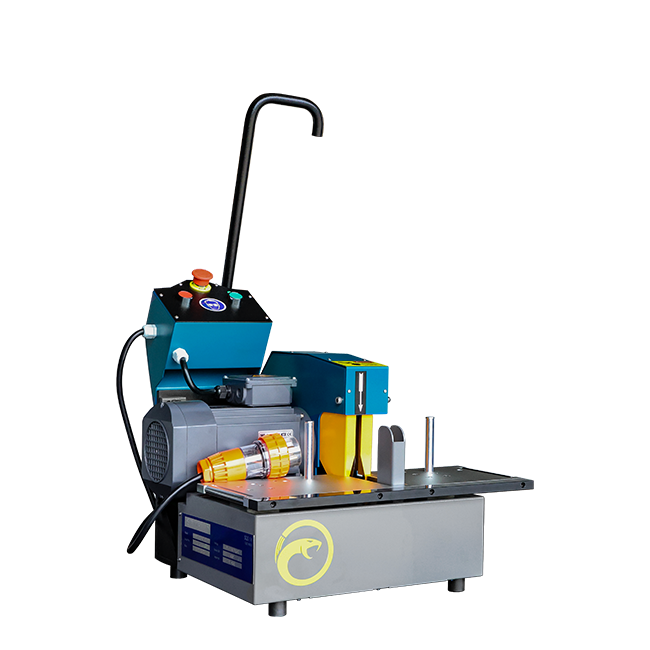

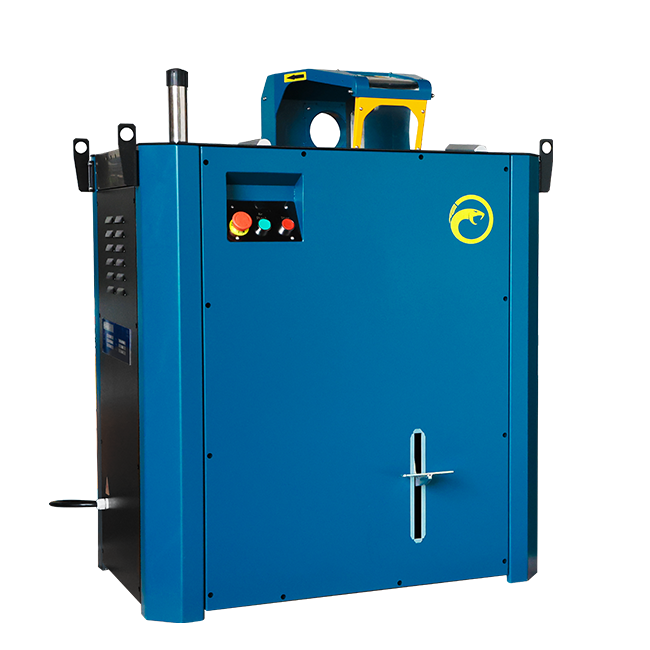

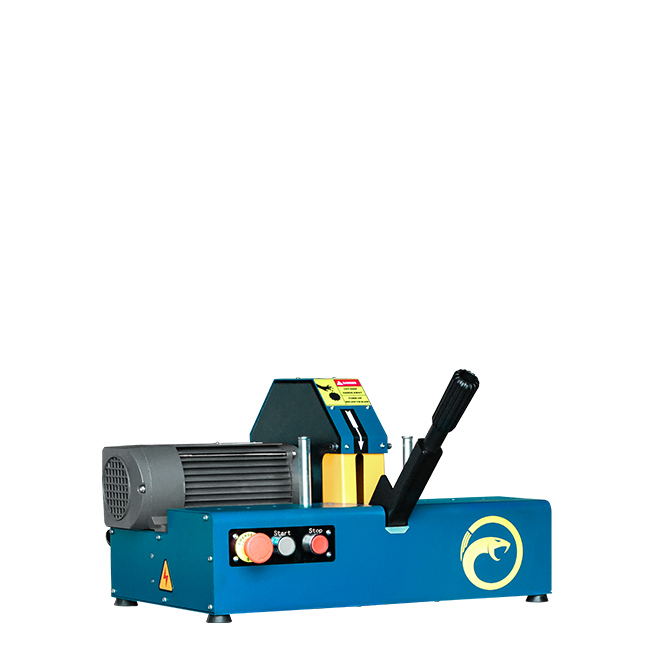

Cut-Off Saws

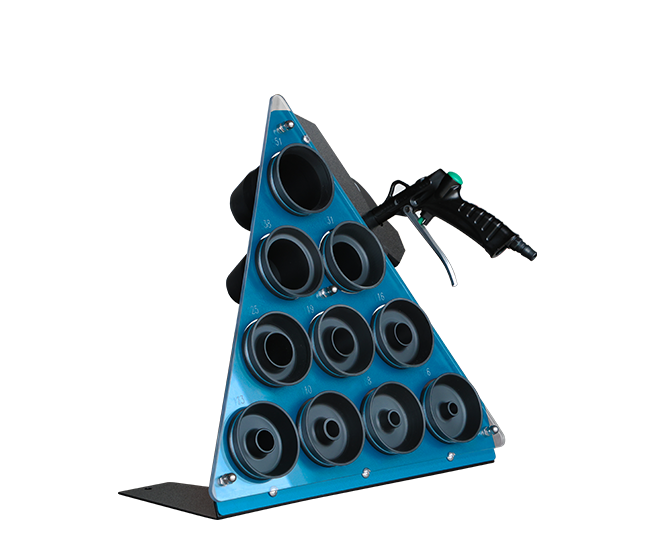

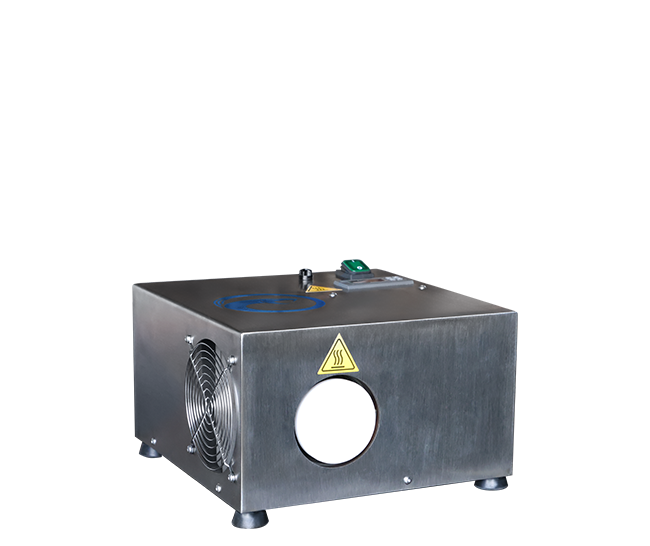

Assembly Accessories

HYDRAULIC CRIMPERS

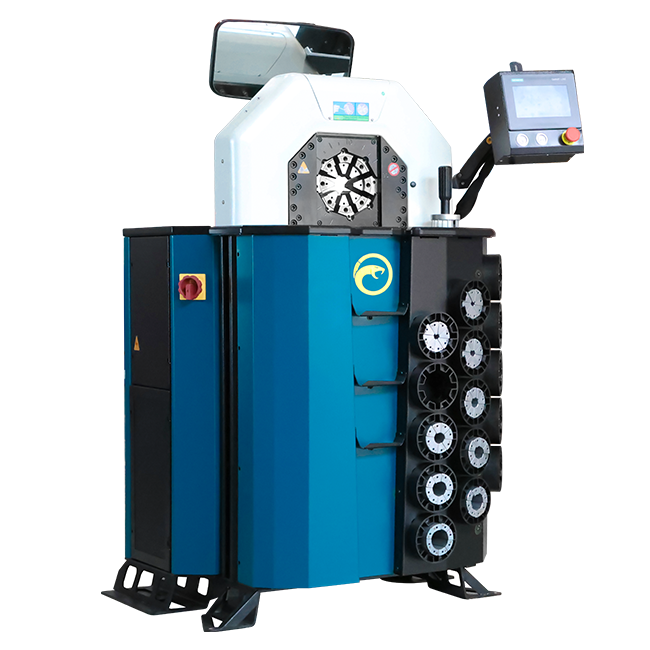

T120L

2″ SIX WIRE WORKSHOP CRIMPER

PLC Controlled
Quick Change Tool
Mirror
Electric backstop
Die rack
Foot Pedal (with automatic continuous crimping function)

Max. crimping diameter (mm)	118
Max. crimping force (KN/TON)	2450/245
Cycle time 10 mm (s)	1.8
Hydraulic hose ID size (inch)	2
Max. opening (mm)*	+52
Max. opening without dies (mm)	170
Master die D/L (mm)	99/80
Motor Power (kW/HP)	4.0/5.44
Voltage	400v
Oil tank volume (L)	70

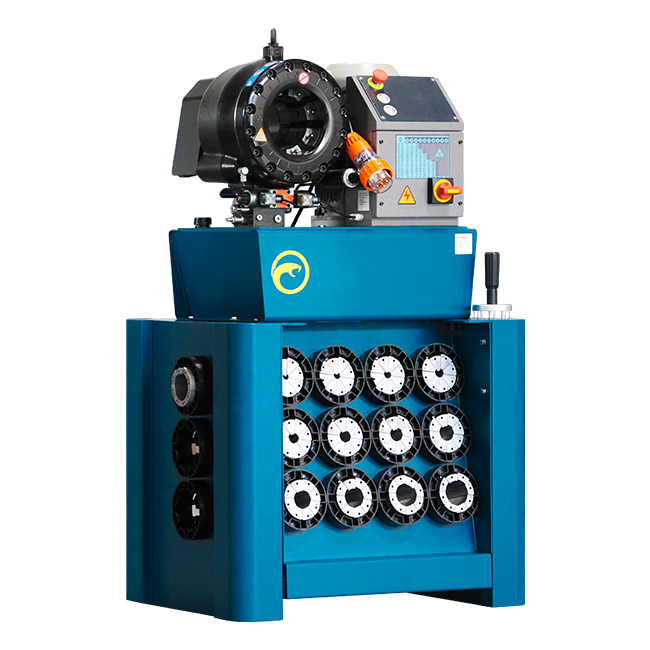

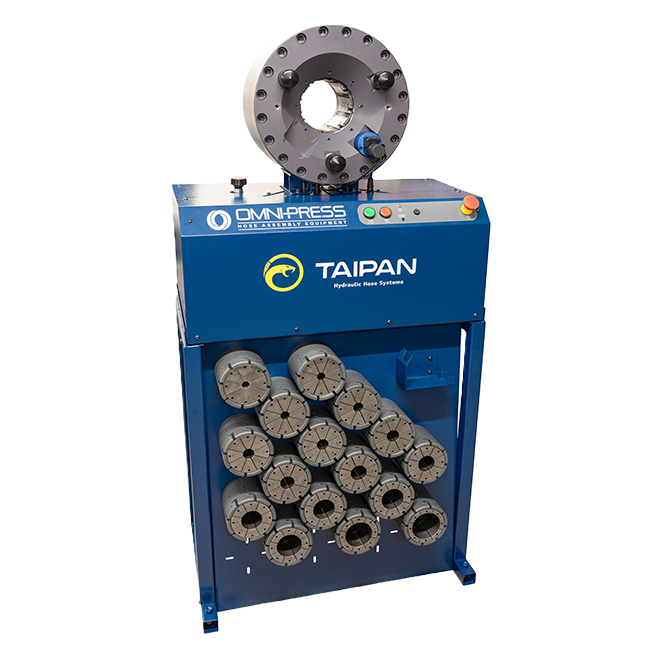

T32

2″ FOUR-WIRE 3 PHASE CRIMPER

Up to 2” 4-wire spiral hose
Quick Change Tool
Die rack
Foot pedal

Max. crimping diameter (mm)	10-87
Max. crimping force (KN/TON)	2000/200
Cycle time 10 mm (s)	3.3
Max. hose size	2” 4W
Max. opening (mm)*	+33
Max. opening without dies (mm)	132
Master die D/L (mm)	99/80
Motor Power (kW/HP)	3.7/5.0
Voltage	400v
Oil tank volume (L)	32

T20

1 ½” FOUR-WIRE 3 PHASE CRIMPER

Up to 1 ½” 4-wire spiral hose
Quick Change Tool
Die rack
Foot pedal

Max. crimping diameter (mm)	10-61
Max. crimping force (KN/TON)	1370/370
Cycle time 10 mm (s)	3.6
Max. hose size	1 1/2“ 4W
Max. opening (mm)*	+25
Max. opening without dies (mm)	109
Master die D/L (mm)	84/80
Motor Power (kW/HP)	3.0/4.0
Voltage	400v
Oil tank volume (L)	32

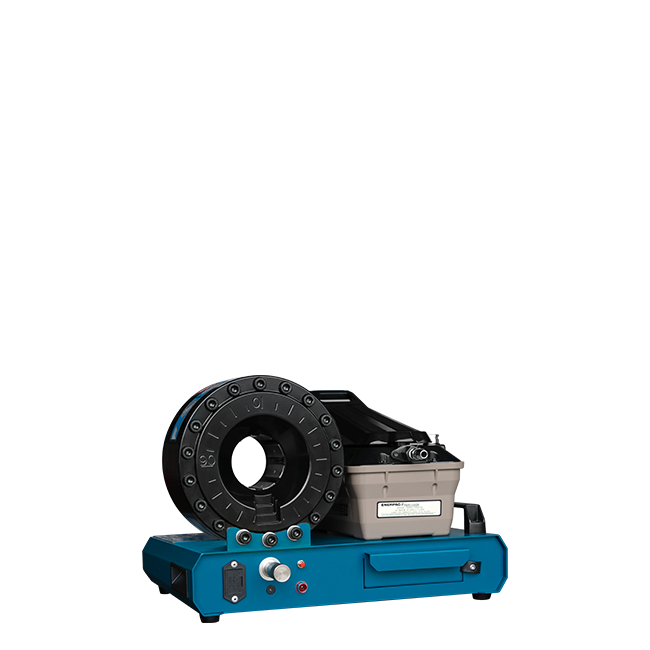

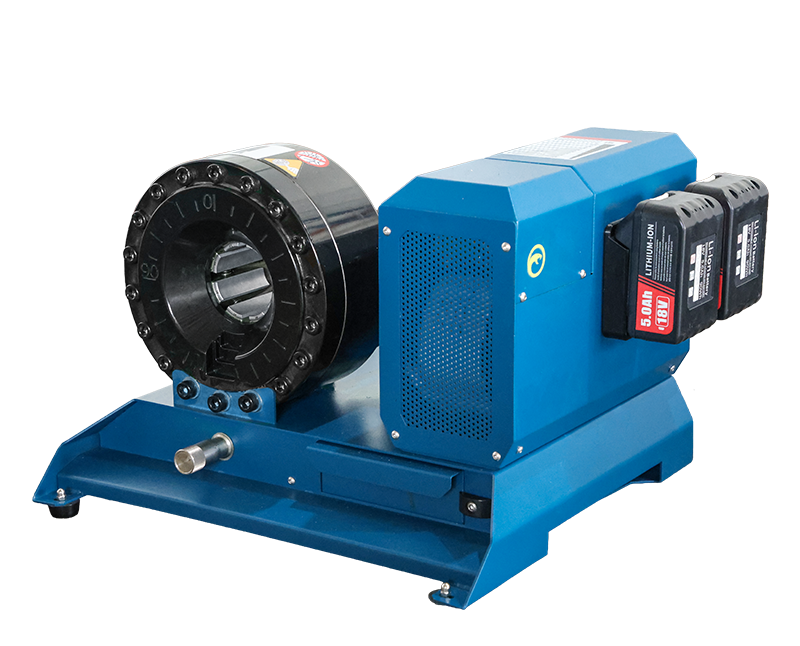

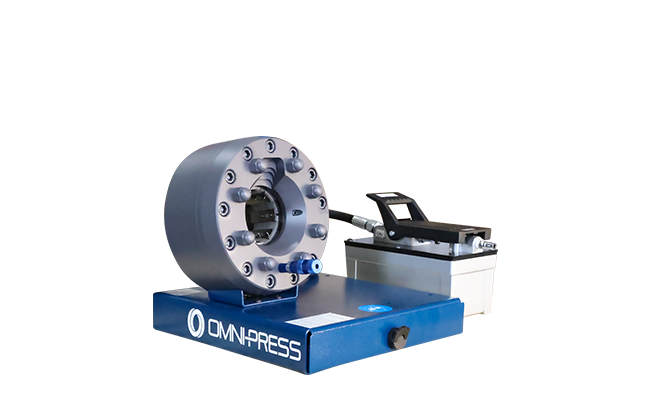

T18

1″ FOUR-WIRE MOBILE HOSE CRIMPER

Up to 1” 4-wire spiral hose

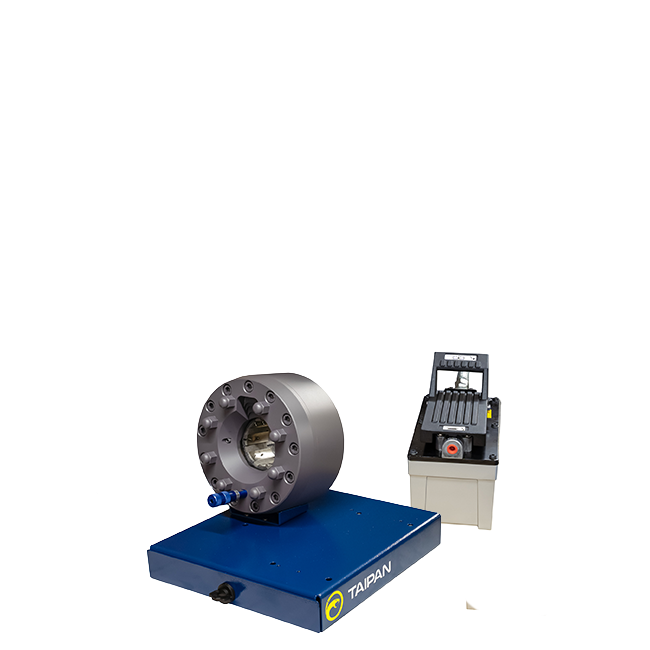

Air over hydraulic pump
Lightweight & compact

Max. crimping diameter (mm)	10-54
Max. crimping force (KN/TON)	1100/110
Max. hose size	1” 4W
Max. opening (mm)*	+20
Max. opening without dies (mm)	68
Master die D/L (mm)	48/64
Oil tank volume (L)	1
