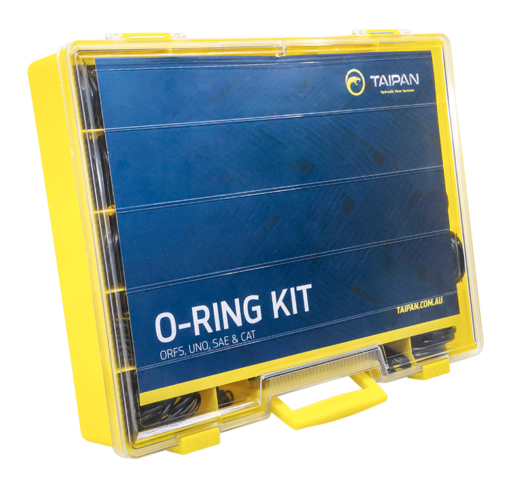

The Ultimate O-Ring Kit is here
Are you tired of digging through multiple different kits to find the one specific O-ring you need?
Our new kit contains 845 pieces and covers a wide range of common fittings, such as Code 61, Code 62, CAT flange, UNO, and ORFS. Each kit comes with a detailed identification chart and includes an industry cross-reference for easy size selection and quick reordering.
The only O-Ring Kit you’ll ever need

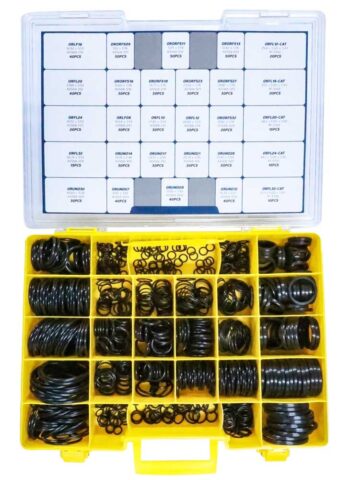

Kit Content Breakdown:
| Thread | Qty | Size | Individual Part No. |
| SAE Flange | 30 | 1/2″ – 3.53mm x 32.92mm (ID) | ORFL08 |
| 30 | 5/8″ – 3.53mm x 21.82mm (ID) | ORFL10 | |
| 30 | 3/4″ – 3.53mm x 25mm (ID) | ORFL12 | |
| 40 | 1″ – 3.53mm x 32.92mm (ID) | ORFL16 | |
| 40 | 1 1/4″ – 3.53mm x 37.69mm (ID) | ORFL20 | |
| 20 | 1 1/2″ – 3.53mm x 47.22mm (ID) | ORFL24 | |
| 15 | 2 – 3.53mm x 56.74mm (ID) | ORFL32 | |
| CAT Flange | 20 | D-Ring 3/4″ | ORFL12-CAT |
| 20 | D-Ring 1″ | ORFL16-CAT | |
| 15 | D-Ring 1 1/4″ | ORFL20-CAT | |
| 15 | D-Ring 1 1/2″ | ORFL24-CAT | |
| 10 | D-Ring 2″ | ORFL32-CAT | |
| ORFS | 50 | O-Ring 9/16″ | ORORFS09 |
| 50 | O-Ring 11/16″ | ORORFS11 | |
| 50 | O-Ring 13/16″ | ORORFS13 | |
| 30 | O-Ring 1″ | ORORFS16 | |
| 30 | O-Ring 1 3/16″ | ORORFS19 | |
| 30 | O-Ring 1 7/16″ | ORORFS23 | |
| 30 | O-Ring 1 11/16″ | ORORFS27 | |
| 20 | O-Ring 2″ | ORORFS32 | |
| UNO | 40 | O-Ring UNO 7/16″ | ORUNO07 |
| 40 | O-Ring UNO 9/16″ | ORUNO09 | |
| 40 | O-Ring UNO 3/4″ | ORUNO12 | |
| 30 | O-Ring UNO 7/8″ | ORUNO14 | |
| 30 | O-Ring UNO 1 1/16″ | ORUNO17 | |
| 30 | O-Ring UNO 1 5/16″ | ORUNO21 | |
| 30 | O-Ring UNO 1 5/8″ | ORUNO26 | |
| 30 | O-Ring UNO 1 7/8″ | ORUNO30 |
